LESS DISTRACTION FOR A SAFER RIDE

THE CONTROL YOU NEED RIGHT AT YOUR FINGERTIPS

A SAFER WAY TO OPERATE YOUR SENA BLUETOOTH® GEAR

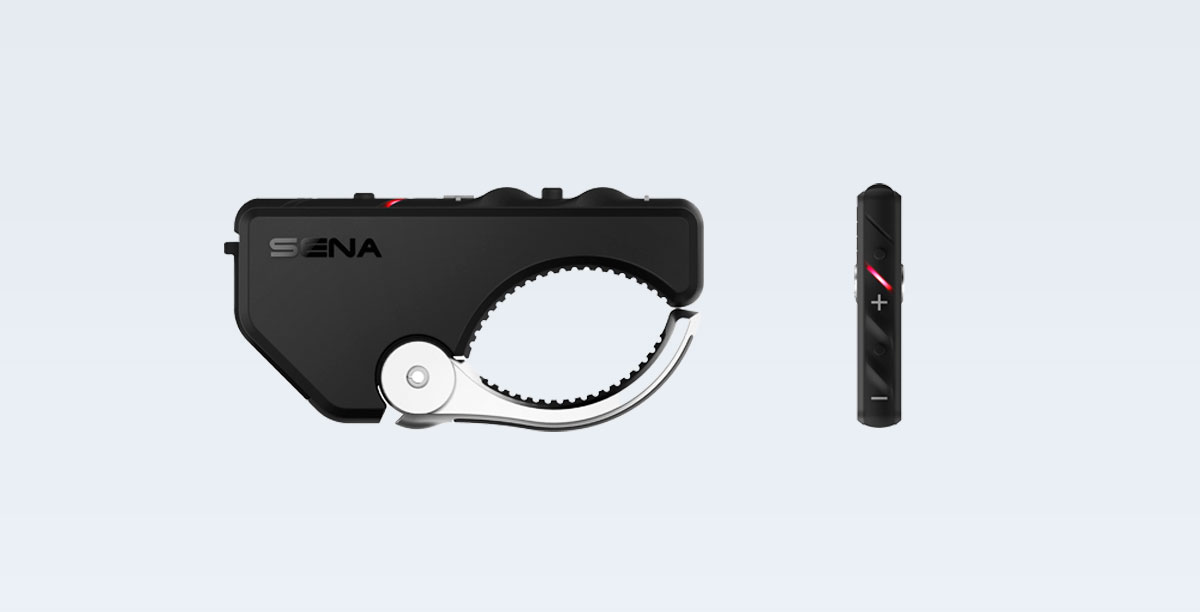

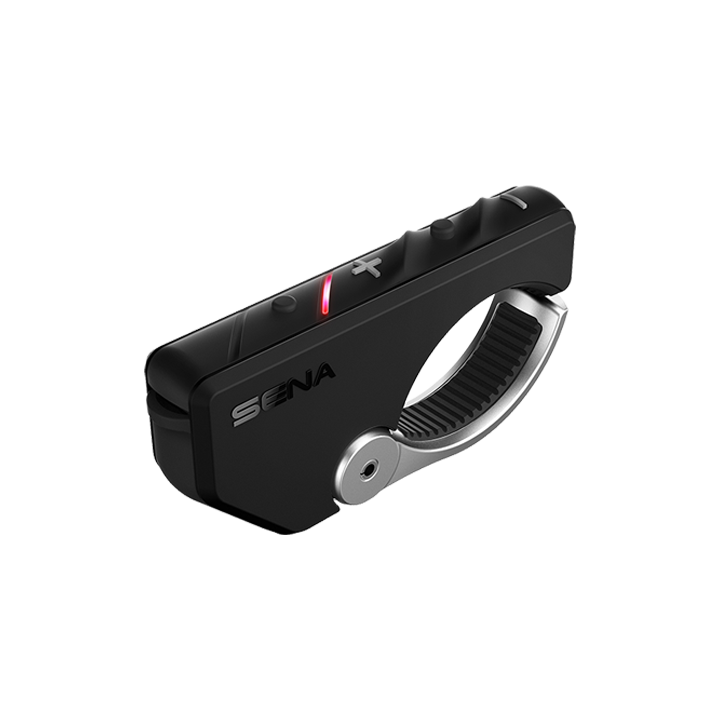

Control at your Fingertips

The RC4 offers complete control of your Sena Bluetooth Headset at the tip of your fingers, without the risk of removing your hands from the handlebars. Its glove friendly, 4-button design allows for extremely simple operation, and less distraction while riding. Place the device directly onto your bike’s handlebars and you’re ready to ride. The RC4 features a much more compact design than its predecessor, and fits perfectly on even more types and sizes of handlebars. You’ll no longer have to reach to your helmet to intercom, answer calls or change a song again. The RC4 has a battery life of about 5 months.

DESIGNED FOR SENA BLUETOOTH 4.1 HEADSETS

The RC4 works with Bluetooth Smart Ready-enabled gear, which is part of the Bluetooth® 4.1 standard. Compatible Models: 20S, 10U, 10C, 10R and 10S How to pair with a Sena Bluetooth Headset.

Product Details

RC3Remote

ProdIcons_Bluetooth4.1
ProdIcons_RemoteControl
ProdIcons_WaterResistant

GENERAL

  • Operating time: 5 months
  • Operating temperature: -10˚C - 55˚C (14°F - 131°F)
  • Water resistant
  • Maximum grip diameter: 38 mm
  • Minimum grip diameter: 24 mm
  • Dimensions: 76.5 mm x 39 mm x 15.5 mm (3 in x 1.54 in x 0.61 in)
  • Weight: 28 g (0.99 oz)

BLUETOOTH

  • Generic Access Profile (GAP)
  • Generic Attribute Profile (GATT)
  • Bluetooth 4.1
  • Working distance: up to 10 meters

BATTERY

  • Type: CR2016 Lithium coin battery
  • Voltage: 3 V

CERTIFICATES

  • CE, FCC, IC

RC4 SINGLE PACK

Part Number: SC-4B-01

RC4
Coin Battery
Handlebar Rubber Bands

Support Documents:

1. Turn on the 20S and the RC4.


2. Press the Jog Dial for 12 seconds to enter the configuration menu. Rotate the Jog Dial until you hear a voice prompt saying, "Remote control pairing". Press the Phone Button to enter into Remote Control Pairing mode and the red LED will flash rapidly and you will hear multiple beeps.


3. On the RC4, press the (+) Button for 8 seconds until its LED flashes red. The 20S will automatically perform pairing with the RC4 in pairing mode. You will hear a voice prompt, "Remote control connected" when they are successfully connected.

1. Turn on the 10U and the RC4.


2. Press the (+) Button for 10 seconds to enter the configuration menu. Tap the (+) Button until you hear a voice prompt saying, "Remote control pairing". Press the (-) Button to enter into Remote Control Pairing mode and the red LED will flash rapidly and you will hear multiple beeps.


3. On the RC4, press the (+) Button for 8 seconds until its LED flashes red. The 10U will automatically perform pairing with the RC4 in pairing mode. You will hear a voice prompt, "Remote control connected" when they are successfully connected.

1. Turn on the 10R and the RC4.


2. Press the Center Button for 10 seconds to enter the configuration menu. Tap the (+) Button or the (-) Button until you hear a voice prompt saying, "Remote control pairing". Press the Center Button to enter into Remote Control Pairing mode and the red LED will flash rapidly and you will hear multiple beeps.


3. On the RC4, press the (+) Button for 8 seconds until its LED flashes red. The 10R will automatically perform pairing with the RC4 in pairing mode. You will hear a voice prompt, "Remote control connected" when they are successfully connected.

1. Turn on the 10C and the RC4.


2. Press the Jog Dial for 10 seconds to enter the configuration menu. Rotate the Jog Dial until you hear a voice prompt saying, "Remote control pairing". Press the Phone Button to enter into Remote Control Pairing mode and the red LED will flash rapidly and you will hear multiple beeps.


3. On the RC4, press the (+) Button for 8 seconds until its LED flashes red. The 10C will automatically perform pairing with the RC4 in pairing mode. You will hear a voice prompt, "Remote control connected" when they are successfully connected.

1. Turn on the 10S and the RC4.


2. Press the Jog Dial for 10 seconds to enter the configuration menu. Rotate the Jog Dial until you hear a voice prompt saying, "Remote control pairing". Press the Phone Button to enter into Remote Control Pairing mode and the red LED will flash rapidly and you will hear multiple beeps.


3. On the RC4, press the (+) Button for 8 seconds until its LED flashes red. The 10S will automatically perform pairing with the RC4 in pairing mode. You will hear a voice prompt, "Remote control connected" when they are successfully connected.
